How to Measure Trampoline Springs

How to Measure Trampoline Springs : A Buying Guide, Comparison, and Troubleshooting Manual

Replacing trampoline springs sounds simple until the new ones arrive and don’t fit. A spring that’s even half an inch too long or too short can leave the mat sagging, make the bounce feel off, or stress the frame. This guide shows you how to measure your springs correctly, what to look for when buying, how the main spring types compare, and how to fix common problems.

Why Accurate Measurement Matters

Springs hold the mat to the frame and absorb the energy of every jump. The wrong size causes problems:

• Too long: The mat sags, the bounce is weak, and a jumper is more likely to hit the frame or the ground.
• Too short: The springs are hard to install, put extra tension on the mat and V-rings, and wear out faster.
• Mismatched springs: One side of the mat sits lower, and the bounce is uneven.

What You’ll Need

• A steel tape measure or ruler (inches are standard in US listings)
• Digital calipers, if you have them, for wire thickness
• A spring pull tool (T-hook), usually around $10 at hardware or sporting goods stores
• Work gloves and safety glasses
• A notepad or phone for recording your numbers

Safety first: Trampoline springs are under tension. A slipped spring can snap back and cause a serious injury, especially to your face or hands. Always wear eye protection, use a spring tool rather than pulling by hand, and never remove springs while anyone is on the trampoline.

Step-by-Step: How to Measure a Trampoline Spring

1. Remove one spring. Use the spring tool to detach one spring from the frame and mat. Choose one that isn’t badly rusted or visibly stretched. Better yet, if you have an unused spring from the original package, measure that one.

2. Lay it flat and relaxed. Place the spring on a flat surface without stretching or compressing it.

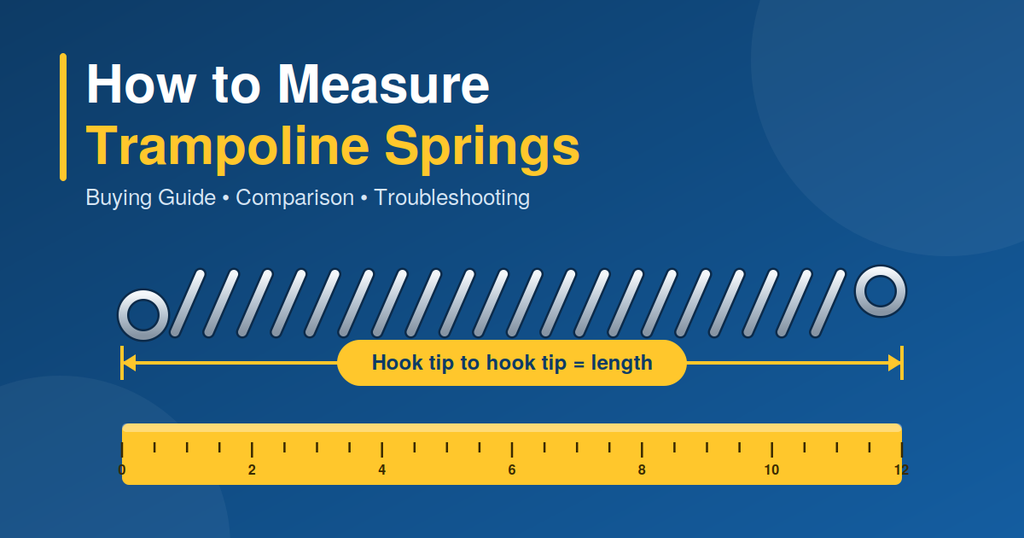

3. Measure the overall length. Measure from the outside tip of one hook to the outside tip of the other hook. This is how most US manufacturers and retailers list spring length. Check the product page, because a few sellers list coil length or inside-hook length instead.

4. Measure the coil body. Also record the length of the coil section alone, without the hooks. If a seller lists a different measurement than the one you took, this number helps you compare.

5. Check the wire thickness. Use calipers to measure the diameter of the wire. Many trampoline springs fall roughly between 2.5 mm and 3.5 mm, but this varies by brand and trampoline size. Thicker wire generally means a stiffer spring.

6. Measure the outer coil diameter. Many standard springs are around 1 inch across, but don’t assume. Measure yours.

7. Note the hook style. Look at the shape and opening of the hooks. They need to fit both the frame’s spring holes and the mat’s V-rings.

8. Count your springs. Count every spring on the trampoline. The number varies by model, so write it down before you order.

Typical Spring Lengths by Trampoline Size

These ranges are general guides only. Always confirm against your own measurement and your trampoline’s manual.

Trampoline Size	Typical Spring Length (approx.)
8 ft	5.5 in
10 ft	6.5 in
12 ft	7 in
14 ft	7 in
15 ft	7.5 to 8.5 in

Rectangular and oval trampolines, and different brands, can vary from these numbers.

Buying Guide: What to Check Before You Order

1. Match your measurements. Overall length, wire thickness, and hook style should all line up with your original springs.
2. Check the material and coating. Galvanized (zinc-coated) springs resist rust best. Powder-coated springs look good and hold up well until the coating chips. This matters most if your trampoline lives outside in a humid, coastal, or snowy climate.
3. Buy a full set. Mixing new and old springs creates uneven tension. Replace them all at once.
4. Confirm the weight rating. Make sure the springs are suited to the trampoline’s weight limit.
5. Verify compatibility. Give the seller your trampoline’s brand, model, and size, and ask them to confirm fit.
6. Check the return policy. Sizing mistakes happen, so choose a seller with an easy return process.
7. Look for safety compliance. Reputable trampolines are typically designed to meet ASTM F381, the US standard for trampoline safety. Replacement parts from the original manufacturer are the safest bet.

Comparison: Which Type of Spring Is Right for You?

Type	Pros	Cons	Best For
Galvanized steel	Excellent rust resistance, long-lasting	Costs a bit more	Outdoor trampolines in any climate
Powder-coated steel	Clean finish, durable	Rust can start once the coating is scratched	Backyard use with regular upkeep
Basic uncoated steel	Inexpensive	Rusts quickly	Short-term or mostly indoor use
Heavy-duty (thicker wire)	Handles more weight	Firmer bounce	Larger families or heavier users

If you’re tired of replacing springs altogether, springless designs use flexible rods instead. They cost more up front, but they remove spring wear and pinch points entirely.

What to Look for in a Product Review

When reading reviews (or writing one), look for these details instead of a simple “fits great”:

• Did the actual spring length match the listing?
• Were the hooks easy to attach to the frame and mat?
• How long before rust appeared?
• Did the bounce feel too stiff or too soft?
• Were all springs in the set the same size?
• Was customer service helpful with returns or replacements?

Remember that “fits perfectly” only helps if the reviewer owns the same trampoline model as you.

Troubleshooting Common Spring Problems

The mat is sagging. The springs are likely stretched or too long. If they’re old, replace the full set. Double-check that the new springs match your original measurements.

The springs won’t attach. They may be too short, or the hook style may not match. Don’t force them, since that can damage the springs or the mat’s V-rings. Re-measure and compare with the listing.

The bounce is uneven or too stiff. You may have mismatched springs or a few that are overstretched. Measure several to compare lengths and gauges.

Squeaking noises. This usually comes from metal rubbing against metal. Apply a silicone-based lubricant to the contact points. Avoid oil or grease, which attract dirt and grit.

Rust. For light surface rust, brush it off with a wire brush and apply a rust-inhibiting spray. If the rust is heavy or the metal looks pitted, replace the spring, since corroded springs can snap.

A broken spring. Stop using the trampoline right away. A broken spring puts extra strain on the others, so inspect the whole set and replace any damaged ones.

Final Checklist

1. Remove one spring and measure it in its relaxed state.
2. Record overall length, coil length, wire thickness, coil diameter, and hook style.
3. Count your springs.
4. Compare your numbers with the seller’s listing and confirm compatibility.
5. Replace the full set at once.
6. Wear gloves and safety glasses, and always use a spring tool.
